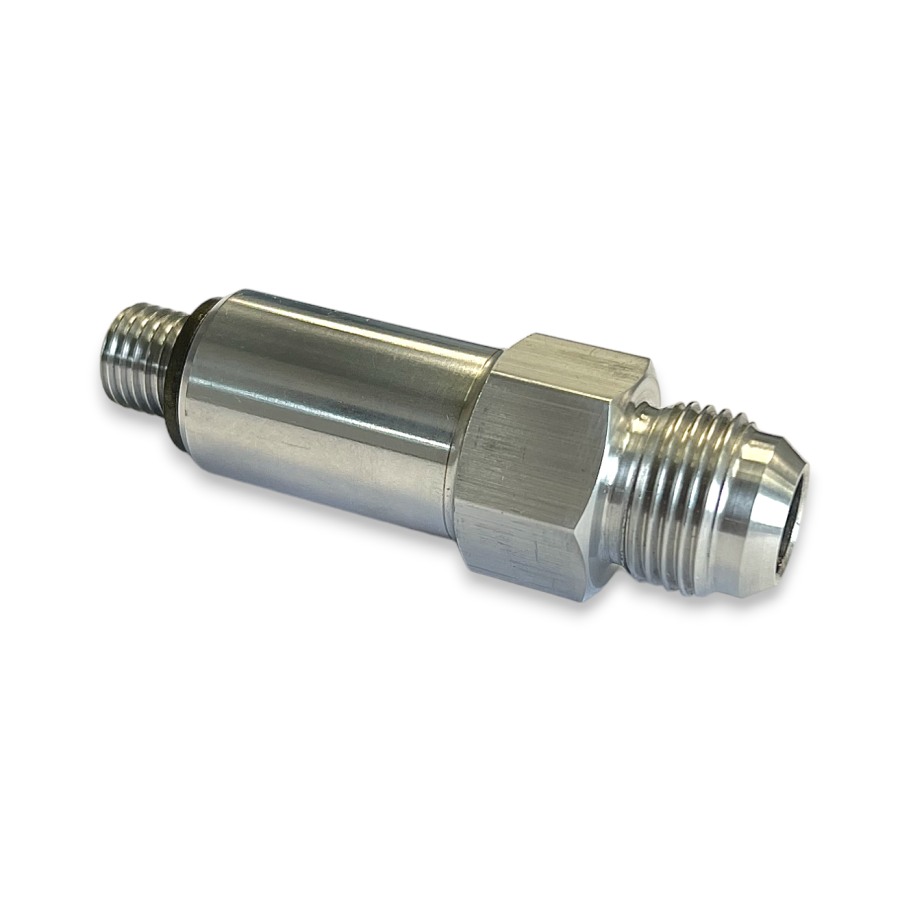

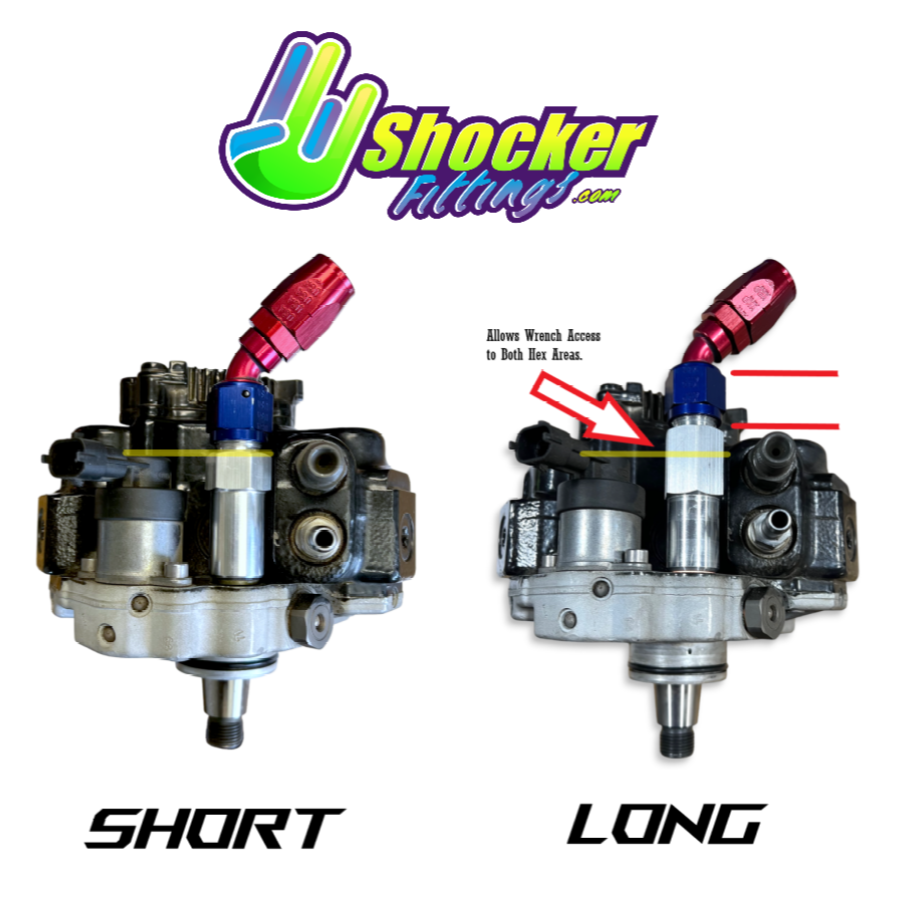

This 1/2" shorter version of our high access pump fitting is designed to expand fitment coverage for those running aftermarket y-bridges. Unlike the XL fitting, this fitting extends the fuel inlet just beyond the FPR, not beyond the pump housing. This shorter length still allows for some wrench engagement and frees up area for -8 plumbing.
Features:
- -8AN Fitting Inlet
- 7/8" Outer Hex
- Billet Aluminum
- Includes Dowty Sealing Washer
- Extends Hose Connection 1-3/4"
- MADE IN USA
Fitment:

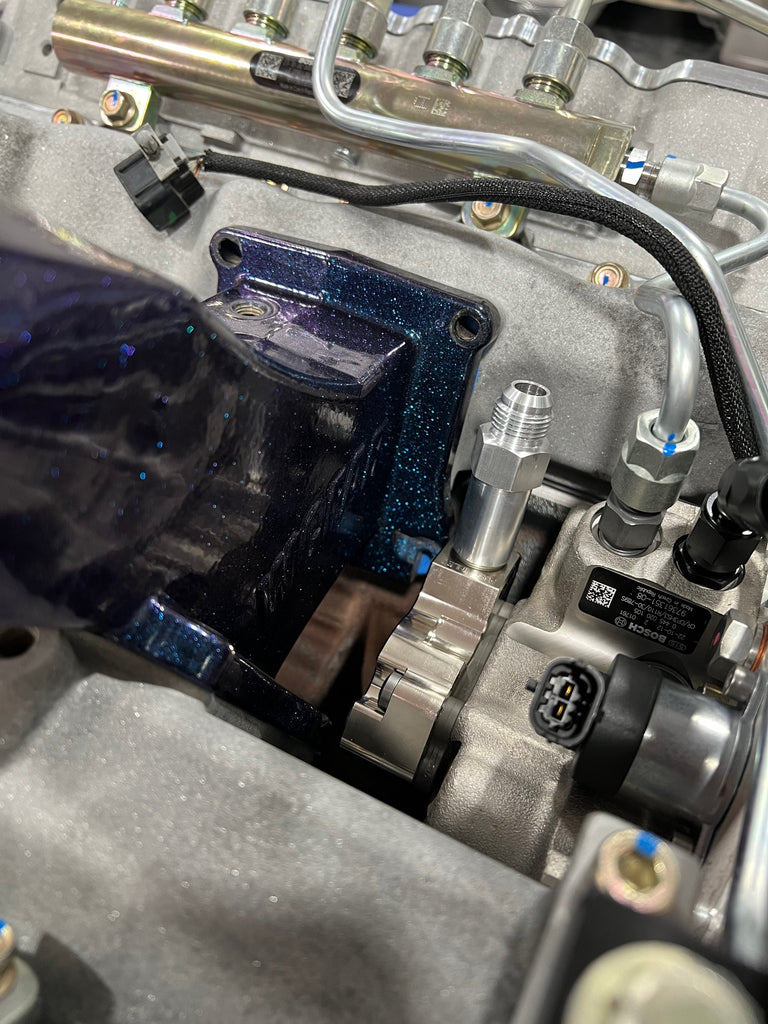

- May not work with some Y-Bridge or intake combinations. Use pump photo for fitment data.
- Works with all Bosch CP3 Injection Pumps with M12x1.5 Inlet
- Will not work with Reverse Rotation Pumps that have the fuel inlet on the charge pump. Those are typically M14x1.5 threads.
- Duramax 2001-2011
- Cummins
- S&S, Exergy, Industrial, Fleece, DDP
