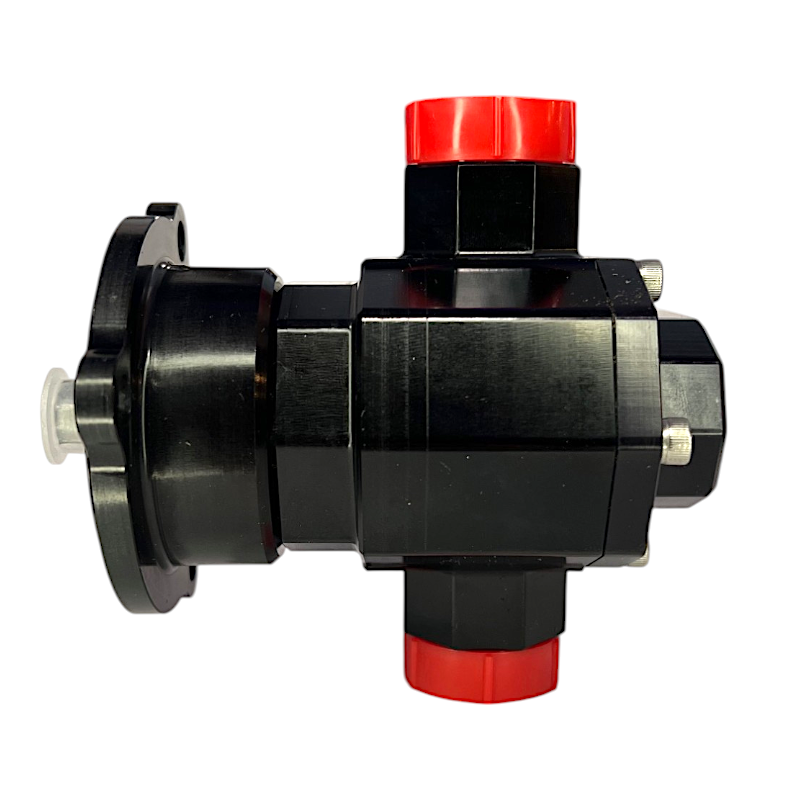

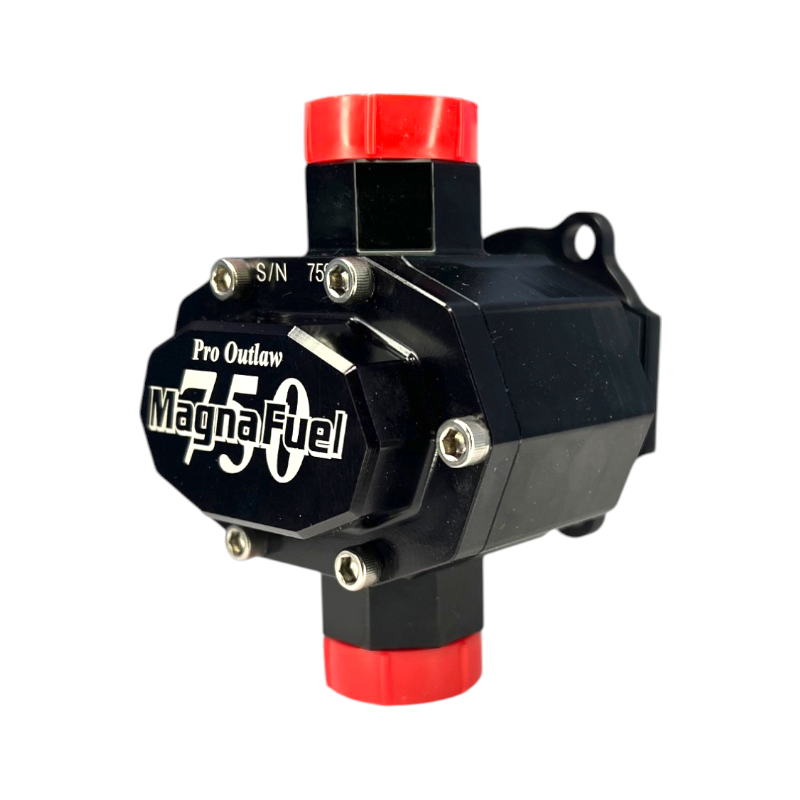

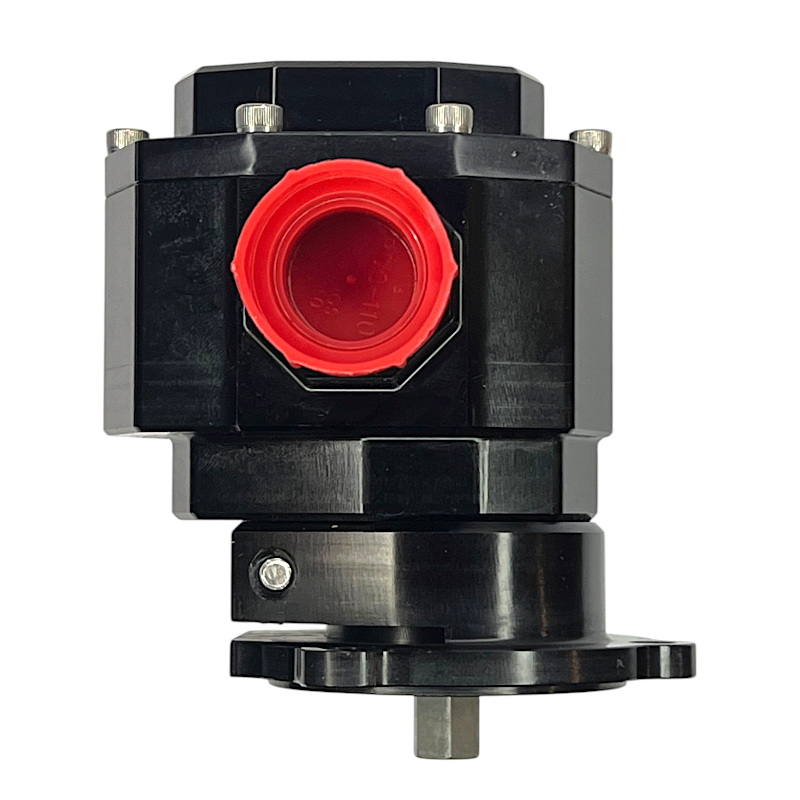

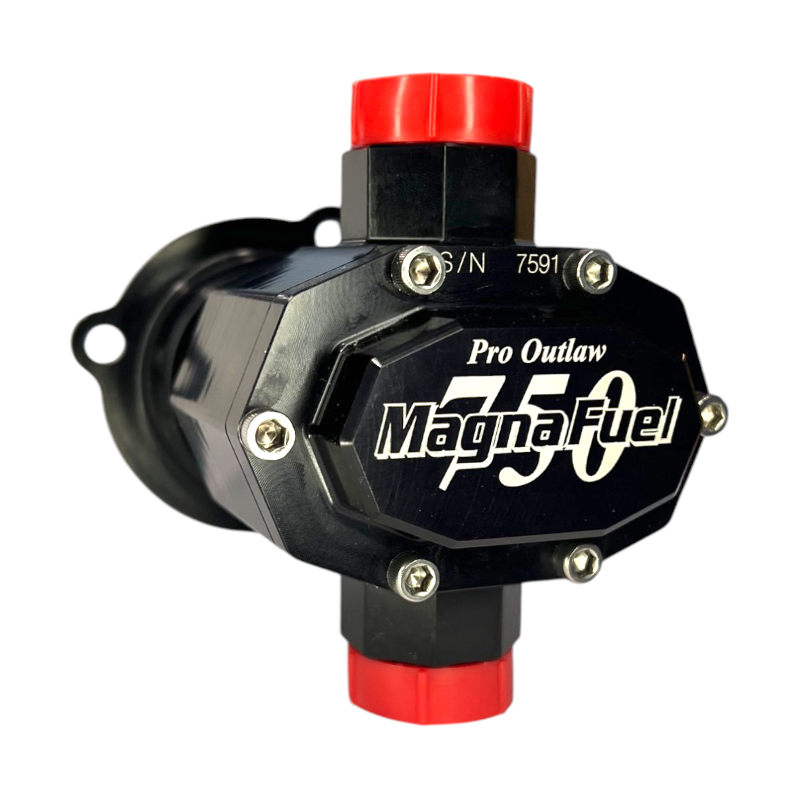

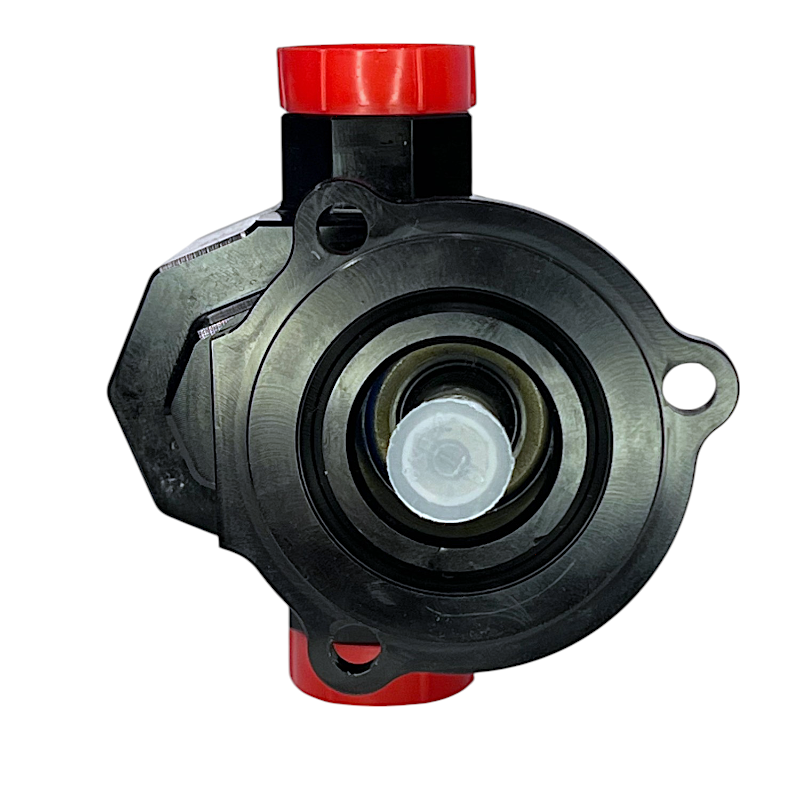

These mechanical fuel pumps from Magnflow work great for competition diesel trucks with billet front engine covers and accessory drives. This pump can be driven in many different ways on both the Cummins, Powerstroke and Duramax platforms. This 750 model is capable of supporting (2) 14mm stroker lift pumps. We have made 2000hp using this outlaw pump.
Specs:
- Will Support (2) 14mm Stroker CP3 Injection Pumps
- Standard 3/8 Hex Drive
- Lightweight, Zero Electronics
- 10AN Inlet/Outlet
- 8GPM @ 4000RPM
- Up to 150PSI Output
- Instruction Sheet
Features:
- Tighter tolerances for easy priming, quick and reliable starts
- Flow rates up to 8 gpm at 100psi for engines with high-volume fuel demands, such as alcohol
- Compact, ultralight design
- Standard 3/8" Hex drive for use with existing devices (belt or cam)
- High-performance gear pump is more durable and requires less maintenance than other designs
- CNC machined body, with hard-anodized finish is compatible with gas, methanol and ethanol
- Double-support bearings, ground-steel shafts, precision lapped
- Polymer wear plates provide tighter tolerances and last longer than other surfaces
- Field serviceable with available rebuild kits
- Absolutely eliminates fuel starvation
- Increases fuel volume delivery as engine RPM increases
- Each pump is flow tested to ensure optimum performance and shipped ready-to-run
- Requires bypassing regulator for EFI applications
- Bracket and cog pulley not include
